Safety & Relief Valves
Overpressure protection for vessels and lines
Safety & Relief Valves
Overview
Safety and relief valves safeguard pressure vessels, boilers and pipelines by automatically relieving excess pressure. Spring-loaded designs open at a set pressure to protect equipment and personnel, then reseat once safe conditions return.
Key Features
- Automatic set-pressure relief
- Pop-action for gas / vapour, modulating for liquid
- Conventional and balanced-bellows designs
- Tight reseating after relief
- Test certificate with set-pressure record
Applications
Boilers Pressure vessels Steam systems Oil & gas Chemical
Technical Data
| Size Range | 1/2" – 12" (DN15 – DN300) |
|---|---|
| Pressure Class | Class 150 – 2500 |
| Body Materials | WCB, CF8 (SS304), CF8M (SS316), forged A105 / F316 |
| Trim / Internals | SS316, Stellited seat |
| End Connections | Flanged, Screwed |
| Operation | Spring loaded (self-actuated) |
| Standards | API 526 / API 527 / ASME Sec. VIII, IBR approved |
Full datasheet available on request

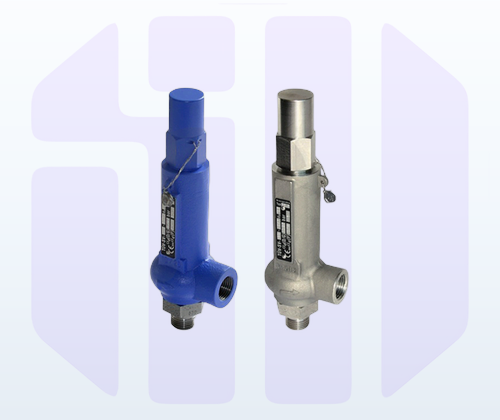

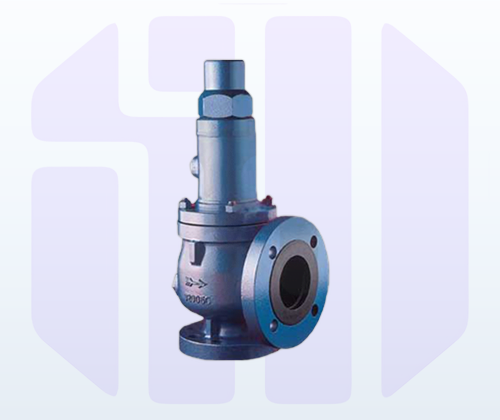

Types & Configurations
Available in the following designs — each can be tailored to your specification.
