Pressure Seal Gate Valves
High-pressure sealing gate valves for severe service
Pressure Seal Gate Valves
Overview
Pressure seal gate valves are engineered for high-pressure, high-temperature isolation. The self-energising pressure-seal bonnet tightens further as internal pressure rises, giving a dependable, leak-tight joint suited to power, refinery and boiler service.
Key Features
- Self-energising pressure-seal bonnet
- Sealing tightens as pressure rises
- Full-bore, bidirectional isolation
- Renewable seat rings
- Butt-weld and flanged ends
Applications
Power plants Boiler feed Refineries High-pressure steam Petrochemical
Technical Data
| Size Range | 2" – 24" (DN50 – DN600) |
|---|---|
| Pressure Class | Class 600 – 2500 |
| Body Materials | WCB, WC6, C5, forged F11 / F22 / F91 |
| Trim / Internals | 13% Cr, Stellited, SS316 |
| End Connections | Butt-weld, Flanged |
| Operation | Handwheel, Gear, Electric / Pneumatic actuator |
| Standards | API 600 / BS 1414 / ANSI B16.34, IBR approved |
Full datasheet available on request

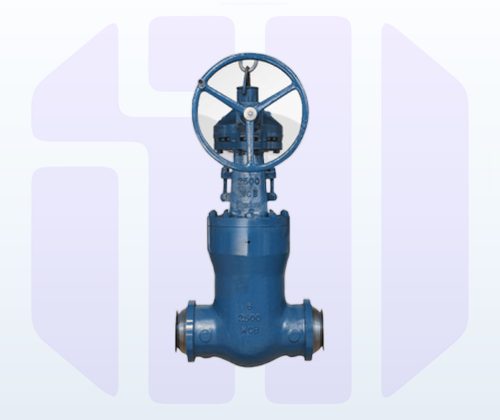

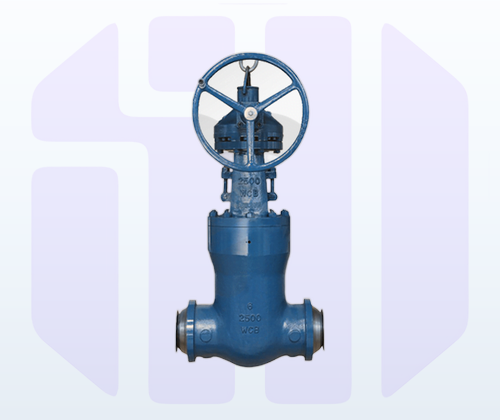

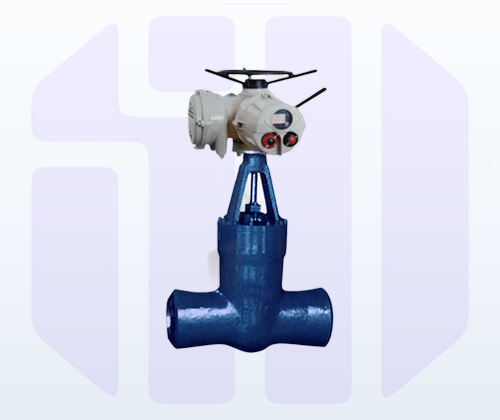

Types & Configurations
Available in the following designs — each can be tailored to your specification.
