Plug Valves
Rugged quarter-turn shut-off for tough media
Plug Valves
Overview
Plug valves use a tapered or cylindrical plug for fast quarter-turn isolation, performing reliably on viscous, abrasive and slurry media. PTFE-sleeved and lubricated designs provide low-maintenance, leak-tight service in aggressive process conditions.
Key Features
- Quarter-turn operation, compact body
- Excellent on slurry, viscous & abrasive media

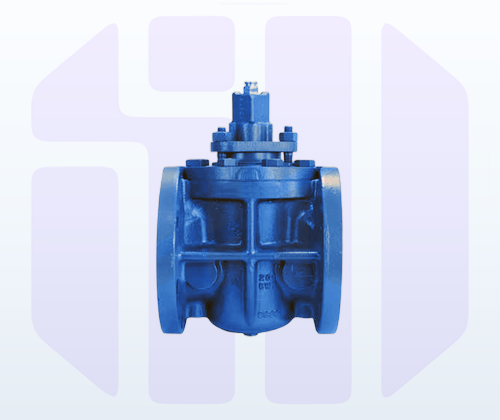

- PTFE-sleeved and lubricated designs
- Multi-port (3-way / 4-way) options
- Drip-tight shut-off
Applications
Chemical Petrochemical Slurry handling Gas pipelines Refineries
Technical Data
| Size Range | 1/2" – 24" (DN15 – DN600) |
|---|---|
| Pressure Class | Class 150 – 600 / PN16 – PN100 |
| Body Materials | WCB, CF8 (SS304), CF8M (SS316), PFA / PTFE lined |
| Trim / Internals | PTFE sleeve, SS316 plug |
| End Connections | Flanged, Screwed, Butt-weld |
| Operation | Lever / Wrench, Gear, Actuator |
| Standards | API 599 / BS 5353 / ANSI B16.34 |
Full datasheet available on request
Types & Configurations
Available in the following designs — each can be tailored to your specification.
