Globe Valves
Precise throttling and flow regulation
Globe Valves
Overview
Globe valves are designed for accurate throttling and frequent operation. Their globular body and disc-against-seat closure give excellent flow control and reliable shut-off, making them a standard choice for regulating service on steam, water and process fluids.
Key Features
- Precise throttling and regulation
- Good shut-off with renewable seat & disc
- Lower seat wear under frequent operation
- Straight, angle and Y-pattern bodies

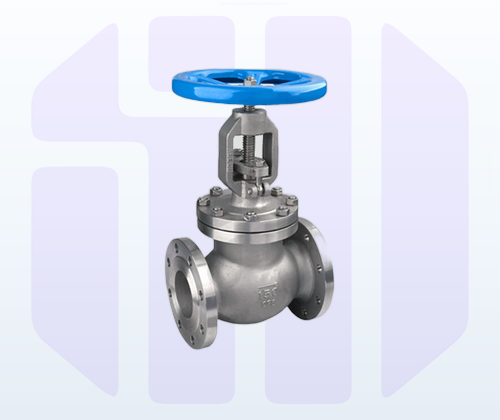

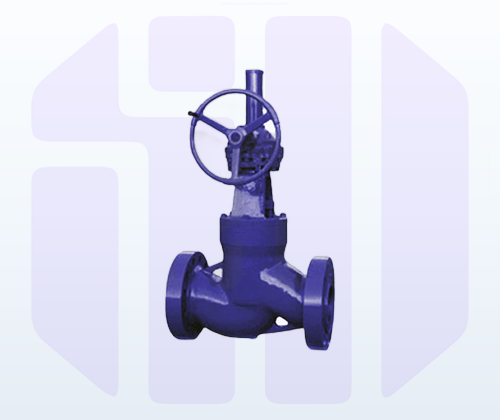

- Bolted-bonnet and pressure-seal designs
Applications
Steam systems Boiler feed Cooling water Petrochemical Power plants
Technical Data
| Size Range | 2" – 24" (DN50 – DN600) |
|---|---|
| Pressure Class | Class 150 – 2500 / PN16 – PN450 |
| Body Materials | WCB, WC6, LCB, CF8 (SS304), CF8M (SS316), forged A105 / F22 / F304 / F316 |
| Trim / Internals | 13% Cr, Stellited, SS316 |
| End Connections | Flanged, Butt-weld, Socket-weld, Screwed |
| Operation | Handwheel, Gear, Electric / Pneumatic actuator |
| Standards | API 623 / BS 1873 / ANSI B16.34, IBR approved |
Full datasheet available on request
Types & Configurations

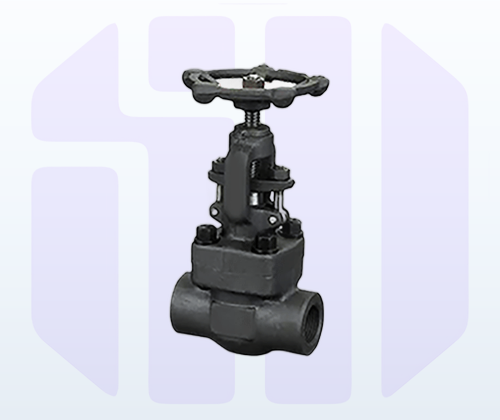

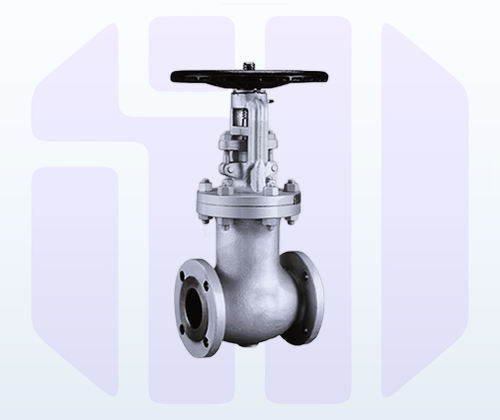

Available in the following designs — each can be tailored to your specification.
