Check Valves
Automatic prevention of reverse flow
Check Valves
Overview
Check valves protect equipment and pipelines by allowing flow in one direction and automatically preventing backflow. A range of designs — swing, dual-plate, lift and piston — covers everything from low-pressure water lines to high-pressure steam systems.
Key Features
- Automatic, non-return reverse-flow protection

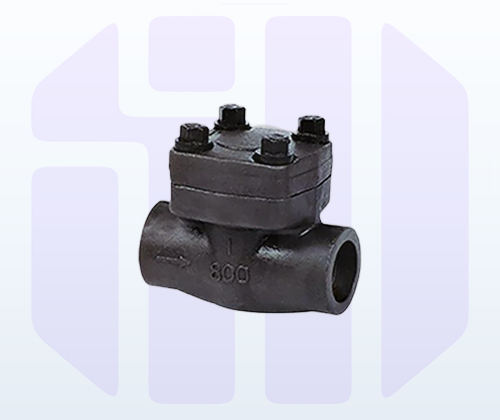

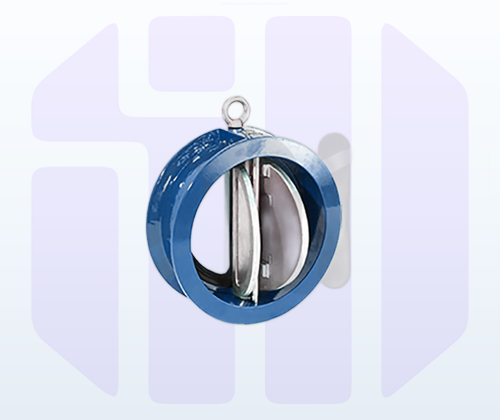

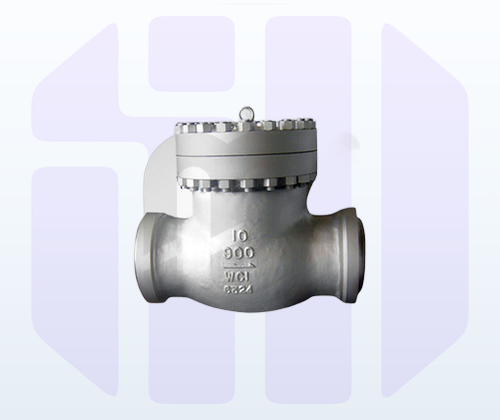

- Swing, dual-plate, lift and piston designs
- Low cracking pressure, minimal slam
- Renewable seats and discs

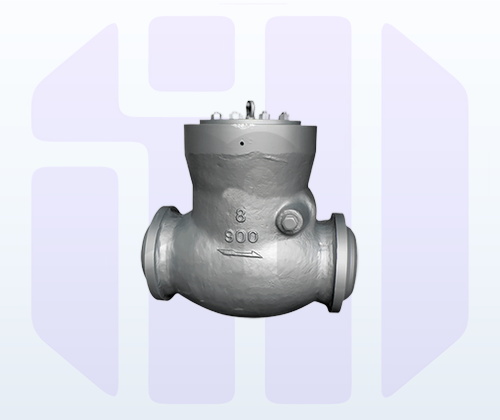

- Bolted-bonnet and pressure-seal constructions
Applications
Pump discharge Boiler feed Oil & gas Power Water systems
Technical Data
| Size Range | 2" – 24" (DN50 – DN600) |
|---|---|
| Pressure Class | Class 150 – 2500 / PN16 – PN450 |
| Body Materials | WCB, WC6, CF8 (SS304), CF8M (SS316), forged A105 / F316 |
| Trim / Internals | 13% Cr, Stellited, SS316 |
| End Connections | Flanged, Butt-weld, Socket-weld, Wafer |
| Operation | Automatic (flow-actuated) |
| Standards | API 6D / BS 1868 / API 594 / ANSI B16.34 |
Full datasheet available on request
Types & Configurations
Available in the following designs — each can be tailored to your specification.
